Double Row Container 125KVA Modular Data centers System Integrated VMDC-125-RRS Double Row Container
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | VMDC-125-RRS |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Standard |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Total Number Of Cabinets | 24 | Number Of IT Cabinets | 22 |
|---|---|---|---|
| Power Density -kW/Cabinet | 5 | Redundancy Type | N+1 |
| High Light | Double Row Modular Datacenters,Integrated Modular Datacenters,5KW Container Data Center |
||
Product Description

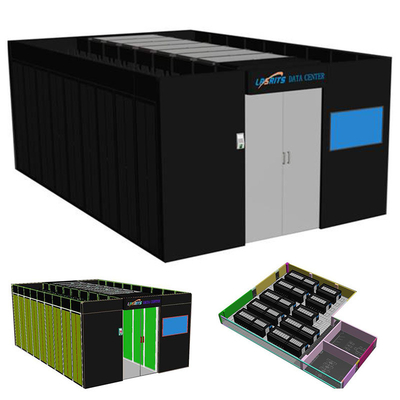

LIRUISI Modular Room Double-Row System VMDC-125-RRS Black Room Dedicated
Product introduction:
【LIRUISI-SYSTEM】 series integrated data center adopts modular design, integrating power supply and distribution system, air conditioning system, cabinet system, closed channel system, monitoring system and wiring system, and configuring various environmental data sampling sensors, unified monitoring and management by eSite cloud map monitoring system to achieve automatic control and intelligenceIt can operate and improve the reliability, availability and maintainability of data centers.
Micro-module data center has wide-ranging applications in different fields, such as:
Edge Computing - Micro-modules can be deployed at the edge of the network to provide computing and storage resources closer to end-users, reducing latency and improving performance.
Scene application:
Core business equipment rooms such as large-scale data centers and campus data centers are suitable for Government, medical, education, finance, telecommunications and other leasing and self-use business.
Product parameters:
| Model | VMDC-125-RRS |
| Total number of cabinets | 24 |
| Number of IT cabinets | 22 |
| Power Density -kW/Cabinet | 5 |
| Redundancy type | N+1 |
| Cabinet depth - mm | 600 |
| Cabinet length - mm | 1200 |
| Cabinet height -mm | 2000 |
| Channel width - mm | 1200 |
| Channel length - mm | 8400 |
| Channel height - mm | 2300 |
| Power Section | |
| UPS capacity -kVA | 25*(5+1) |
| UPS type | modularization |
| battery | Customize on demand |
| PDU | 32A basic type 16 ports |
| Total Input Power Specifications | 400A/3P/380V/50Hz/60Hz |
| Refrigeration system | |
| Refrigeration type | air cooling |
| Air conditioning configuration--kW | 40.9*(3+1) |
| Air conditioning type | Row level air conditioner |
| Emergency ventilation | √ |
| Monitoring Section | |
| Monitoring function | touch screen |
| temperature and humidity | |
| UPS management | |
| Air conditioning management | |
| Smoke | |
| water leak | |
| video | |
