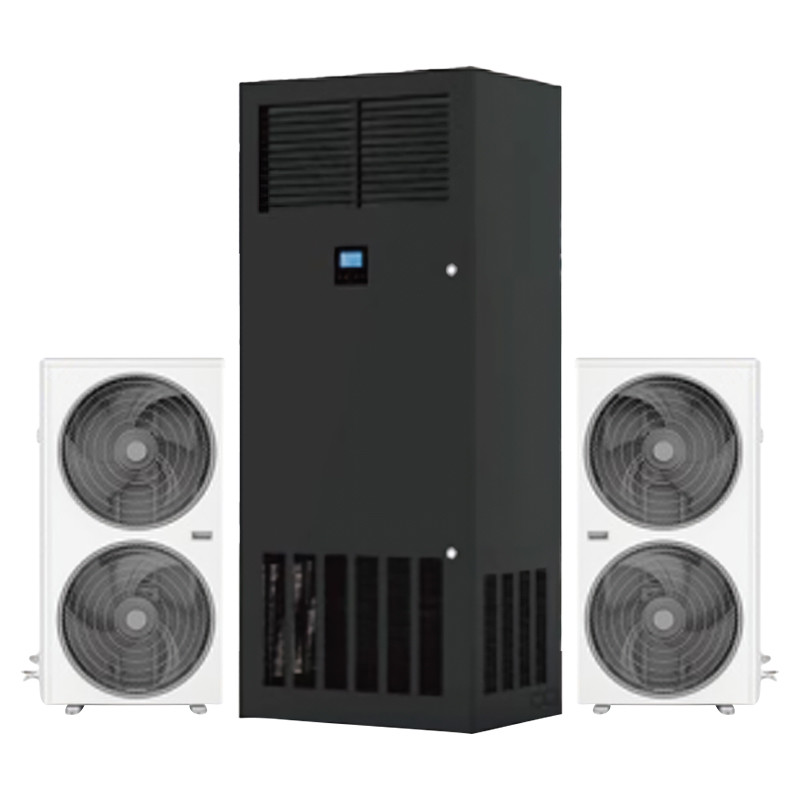

Small Precision Air Conditioning Units 380V 3 Phase 50HZ For Computer Room
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | CSA3020 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Indoor unit power cord and outdoor unit power cord |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Indoor Unit Model | CSA3020 | Main Power Supply | 380V3PH~50HZ |
|---|---|---|---|
| Air Supply Method | Come Forward To Supply Air | Cooling Capacity (kW) | 20.1 |
| High Light | 50HZ Precision Air Conditioning Units,380V Precision Air Conditioning Units,50HZ Computer Room Air Conditioning Unit |
||
Product Description
LIRUISI Small Computer Room Temperature Control Inverter Air Conditioner CSA3020
Product introduction:
The CSA series of small computer room temperature control inverter air conditioning system under Liruisi adopts advanced design concept, equipped with high-efficiency EC centrifugal fan, and the unit has passed the testing of relevant national institutions, which has the remarkable characteristics of long-term energy saving and stable operation.
Application scenarios: small and medium-sized computer rooms, equipment rooms, high-end communication base stations, various equipment rooms, battery rooms, power rooms, substations, distribution rooms, monitoring rooms, etc.
Precision air conditioner products:
Air flow rate and fresh air volume: Determine the air flow rate and fresh air volume based on factors such as personnel density, equipment density, and air heat capacity in the computer room. Generally speaking, the air flow rate inside the computer room should be maintained between 1.0-1.5m/s, and the fresh air volume should be sufficient to ensure the air quality inside the computer room.
Product parameters:
| LIRUISI 【CSA series small computer room temperature control inverter air conditioning system】 | CSA series small computer room temperature control frequency conversion air conditioning system [internal unit size and weight] | ||
| Indoor unit model | CSA3020 | Unit width (mm) | 800 |
| Main power supply | 380V3PH~50HZ | Unit depth (mm) | 650 |
| Air supply method | Come forward to supply air | Unit height (mm) | 1800 |
| CSA series small computer room temperature control frequency conversion air conditioning system【Performance parameters】 | Weight (kg) | 174 | |
| Cooling capacity (kW) | 20.1 | CSA series small computer room temperature control frequency conversion air conditioning system [external unit size] | |
| apparent cooling capacity | 18.1 | External model | LRS-CST020SP1A |
| Maximum working current of the unit A | 26.3 | Unit width (mm) | 1020 |
| Number of compressors | 1 | Unit depth (mm) | 405 |
| Fan form | EC centrifugal fan | Unit height (mm) | 1370 |
| Number of fans | 1 | Weight (kg) | 74 |
| Circulating air volume (m3/h) | 5700 | CSA series small computer room temperature control frequency conversion air conditioning system [Recommended power distribution specifications] | |
| Heating capacity (kw) | 3 | Recommended open | 32 |
| Humidification capacity (kg/h) | 2 | Indoor unit power cord (mm2) | 4*4.0+1*6.0 |
| CSA series small computer room temperature control frequency conversion air conditioning system [connection pipe size] | Outdoor unit power cord (mm2) | 2*1.0+1*1.0 | |
| Liquid tube (mm) | 12.7 | ||
| Trachea (mm) | 19.05 | ||
| Humidification inlet pipe (internal thread) | G"1/2" | ||
| Unit drain pipe (mm) | Inner diameter 19mm, outer diameter 25mm, metal throat hoop connection | ||
