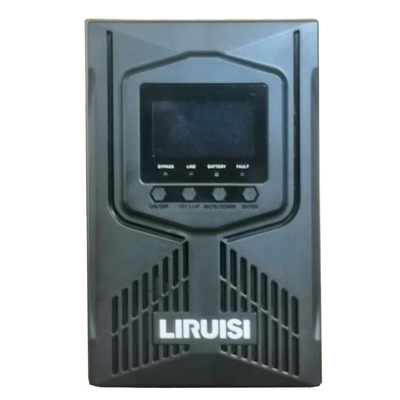

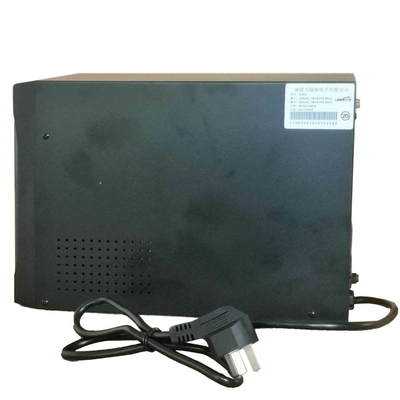

Double Conversion Modular Uninterruptible Power Supply 1kVA Overvoltage Protection
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | E1K |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Rackmount size: 3K(R): 438mm(W) x 88mm(2U)(H) x 500mm(D) Built-in battery includedAll other models of length/label: 438mm(W) x 88mm(2U)(H) x 360mm(D) |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Voltage | 220V 50Hz / 110V 60Hz | Application | Security / Monitoring / Alarm |
|---|---|---|---|
| Protection | Overvoltage | Product Name | Online UPS Systems |
| Battery Type | Lead Acid Battery | Capacity | 1KVA-30KVA |
| High Light | 1kVA Modular Uninterruptible Power Supply,Double Conversion Modular Uninterruptible Power Supply |
||
Product Description
LIRUISI High Frequency UPS Room Dedicated Uninterruptible Power Supply 1kVA
Product introduction:
Liruis E1K [single in, single out] UPS is a high-end low-power online UPS product specially proposed for the needs of small power supply environment of enterprises and institutions, which can provide high openable power protection for users' departmental servers, small LANs, workstations, industrial computers, small medical equipment, and other small precision electronic instruments.
way of working:
Single in single out, double conversion online work order in single out operation
Product Features:
Using advanced DSP digital control technology, providing stable and reliable sine wave power supply 90V~300V extremely wide input voltage and 40~70Hz frequency input range, compatible with harsh power environment, reduce the number of battery discharges, improve battery life full glass fiber double-sided circuit material, with long-span components, strong, corrosion resistance, greatly improve environmental adaptability
| Single Input Single Output High Frequency Tower UPS System | |
| Product model | Single-phase electrical input, single-phase electrical output |
| E1K | |
| Specifications | 1kVA/800W |
| Technical parameters | |
| Machine Architecture | Dual Conversion Online UPS |
| Input and output phases | Single Phase Input/Single Phase Output |
| Input voltage range | Zero fire phase voltage: 90~ 300VAC |
| Input frequency range | 40Hz-70Hz |
| Input power factor | ≥0.99 |
| Number of output lines | Single-phase two-wire (L, N) + protected ground |
| Rated voltage | 208/220/230/240VAC |
| Output voltage accuracy | ±1% |
| Output frequency | 50/60±4Hz (phase-locked follows mains) / 50/60Hz±0.1% (fixed frequency mode) |
| Output waveform | Pure sine wave |
| Overload capacity | 1min@105%~125% rated load, 10s@125%~150% rated load, 0.5S@>150% rated load |
| Battery Voltage/Quantity | 24VDC/2 sections, built-in |
| Battery capacity | 12V/7AH |
| Charging current | Standard machine (built-in battery): 1A, long-term machine (external battery): 4A |
| Tower size | 1KS: 145(W)x220(H)x250(L)mm, 1K, 2KS: 145(W)x220(H)x318(L)mm, 2K: 145(W)x220(H)x390(L) mm3K/3KS: 190(W) x 318(H) x 368(L) mm |
